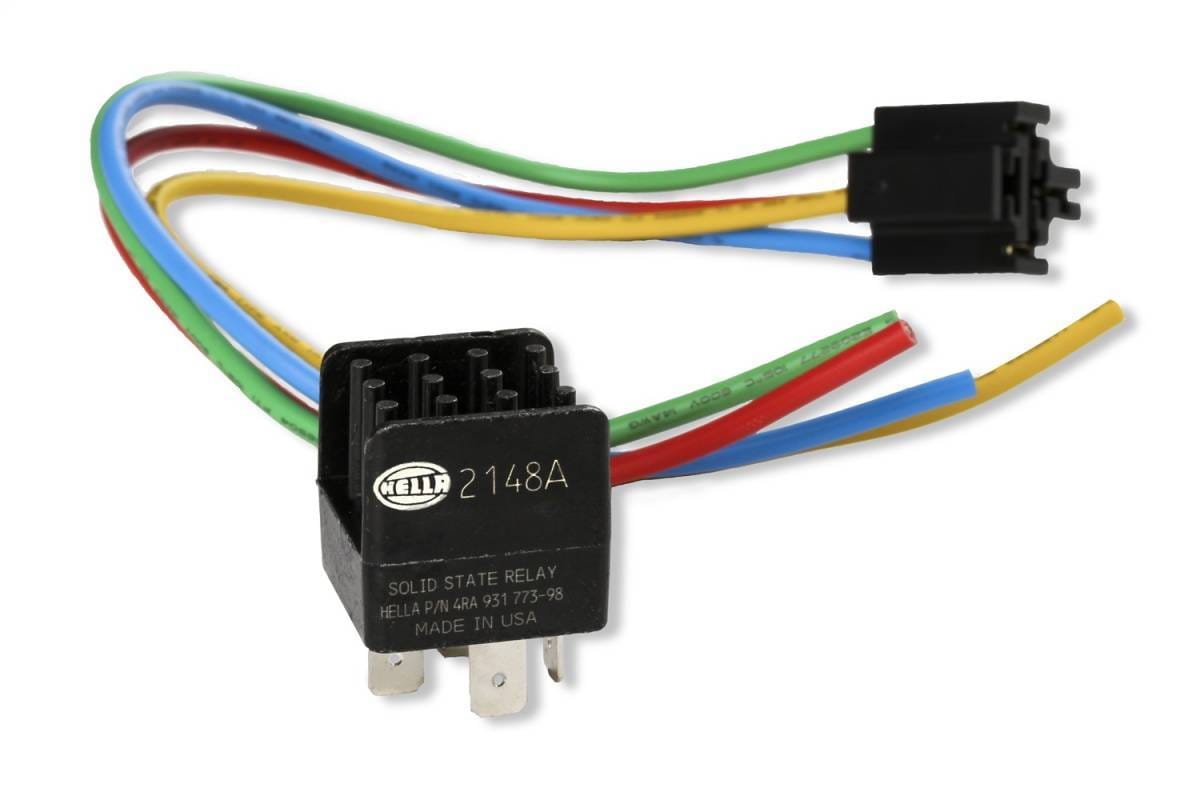

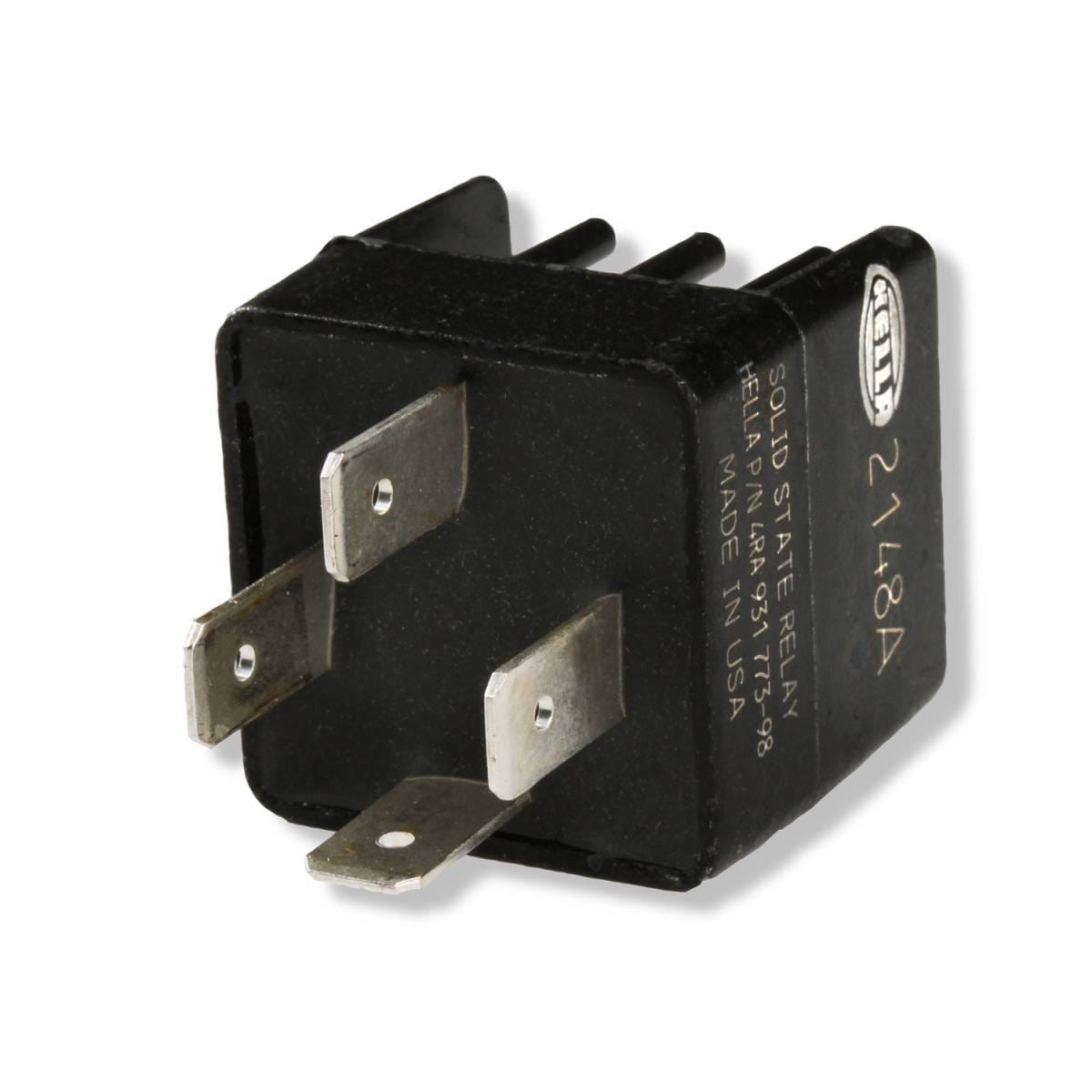

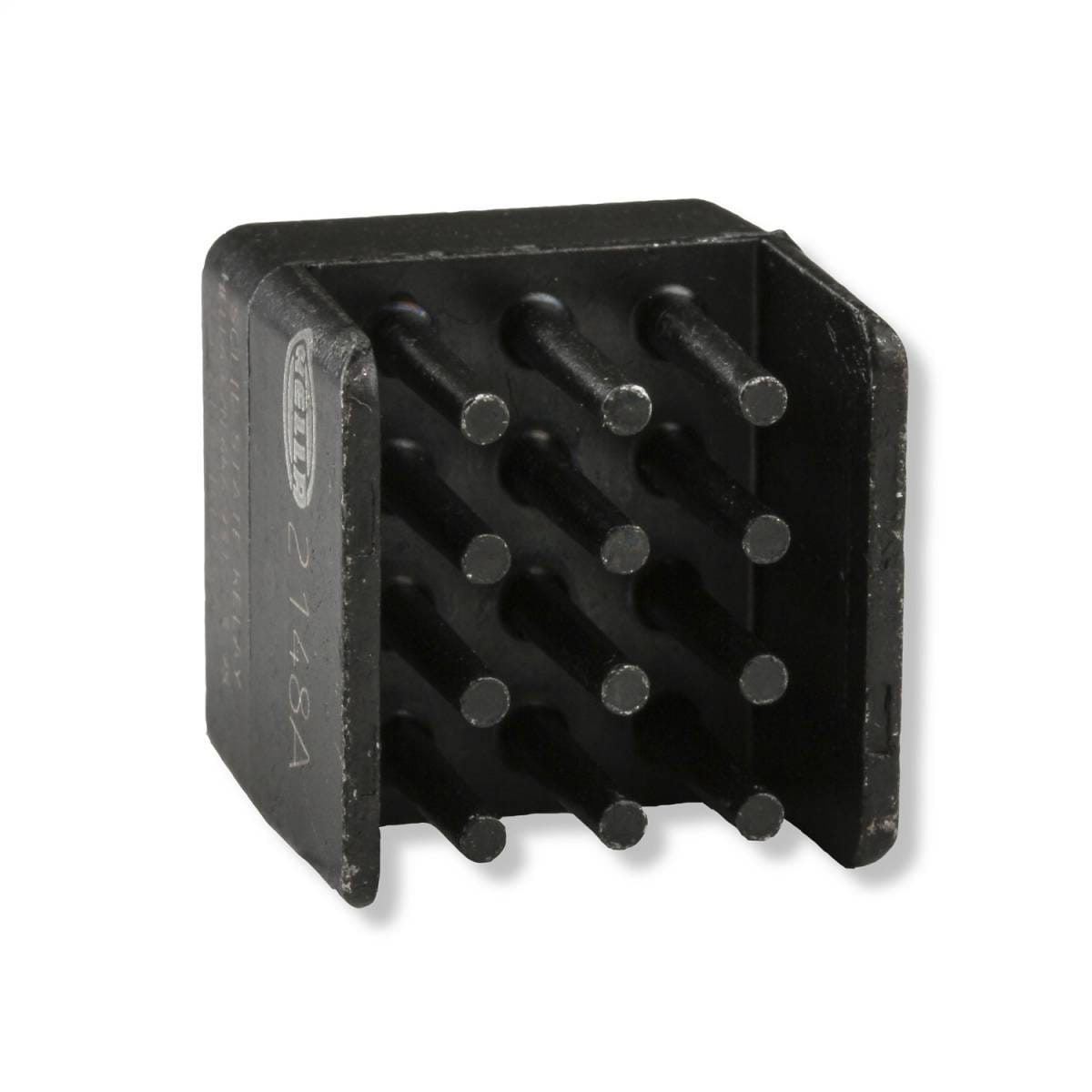

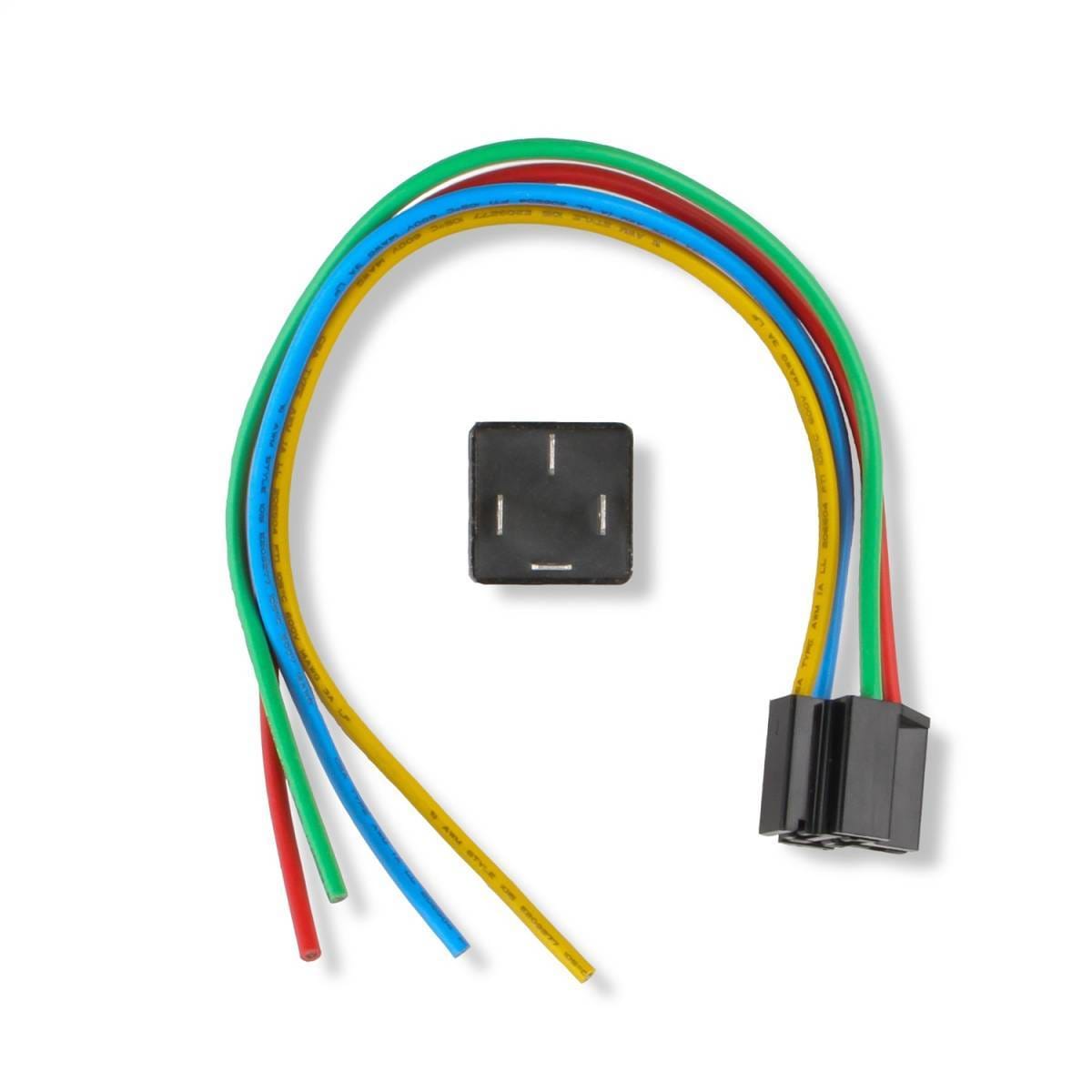

BCCX 89612 MSD Solid State N/O Relay w/Socket Harness

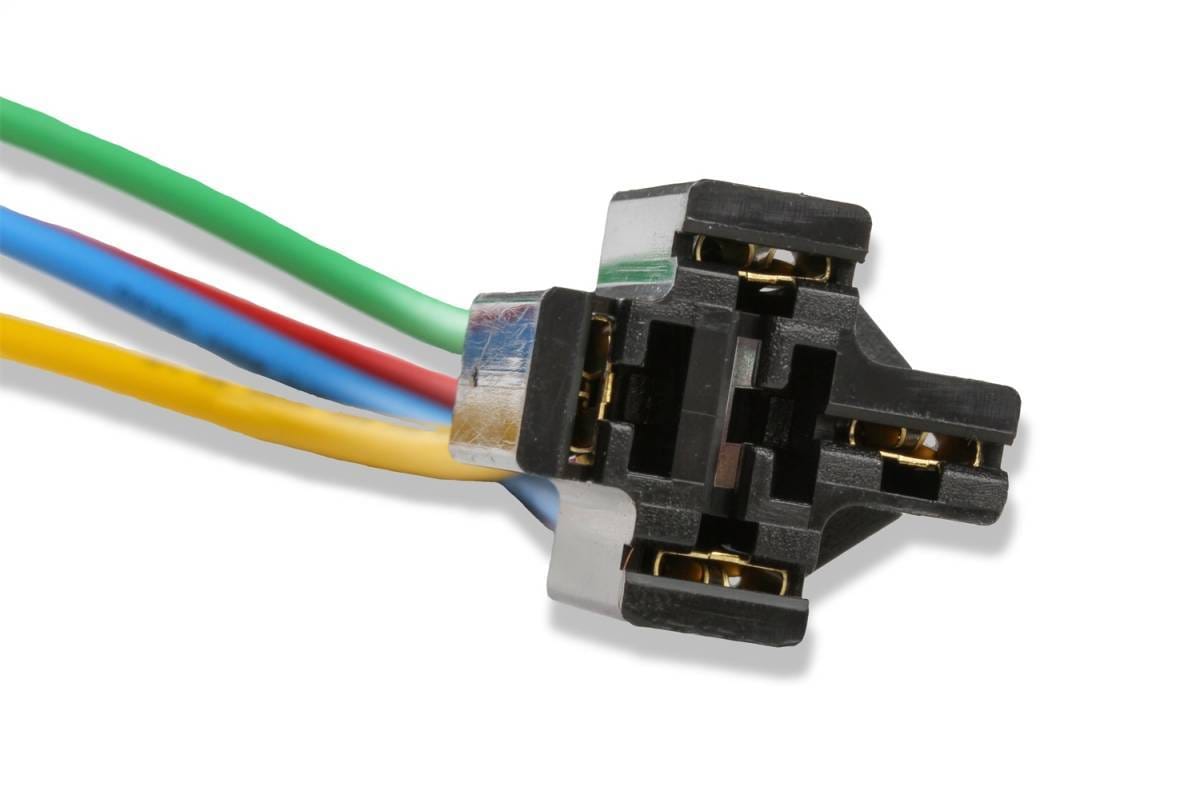

The SPST Normally Open Relay is rated at 20 amps continuous, supplied with Socket Harness.MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11" long leads w/ heavy-duty 14-gauge wire.; The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture.Features and Benefits: Continuous Load - 20Amp; Max Coil Voltage 16-Volts; Max Inrush Load - Overload Protected at 80A; Mini Solid State Relay; Nominal Voltage 12-Volts; Pigtail harness 14 AWG wires, 11” Long; SPST Normally OpenMSDMULTISPST; Relay; 20 Amp; Solid State relay; relay harness; socket harness
