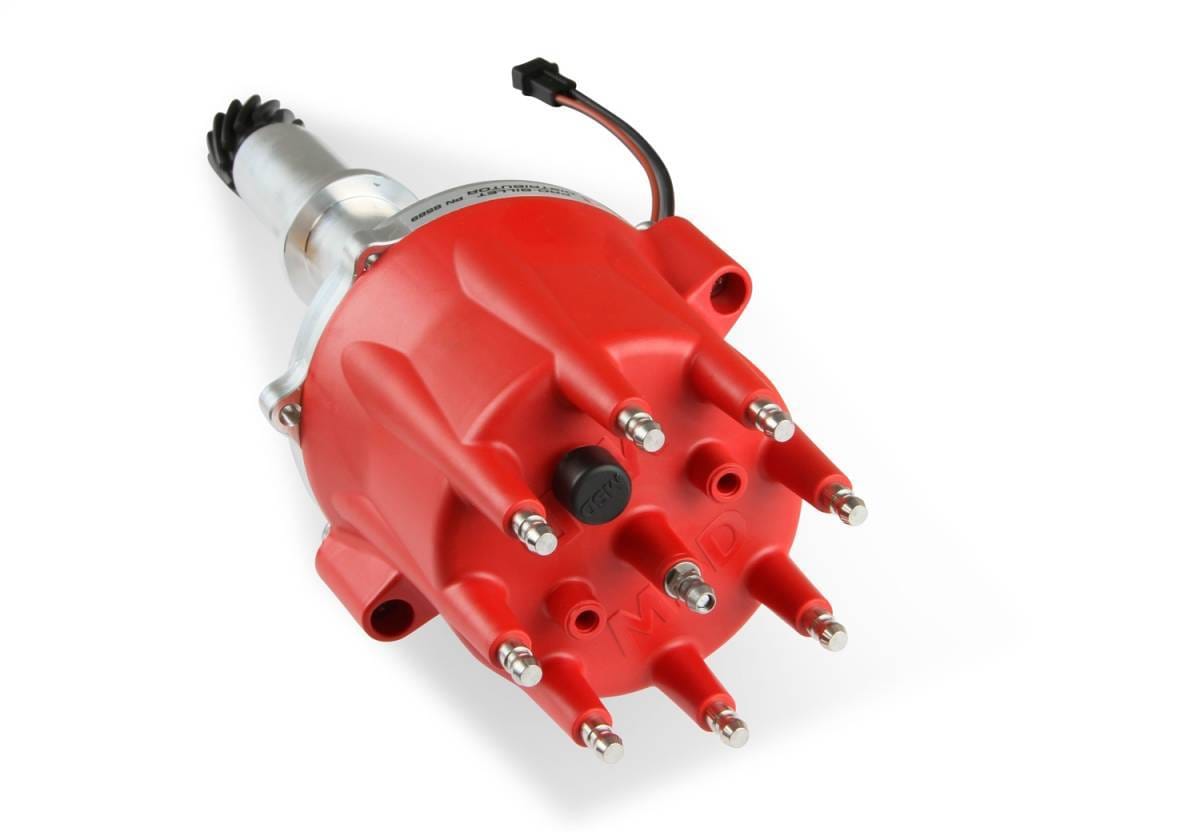

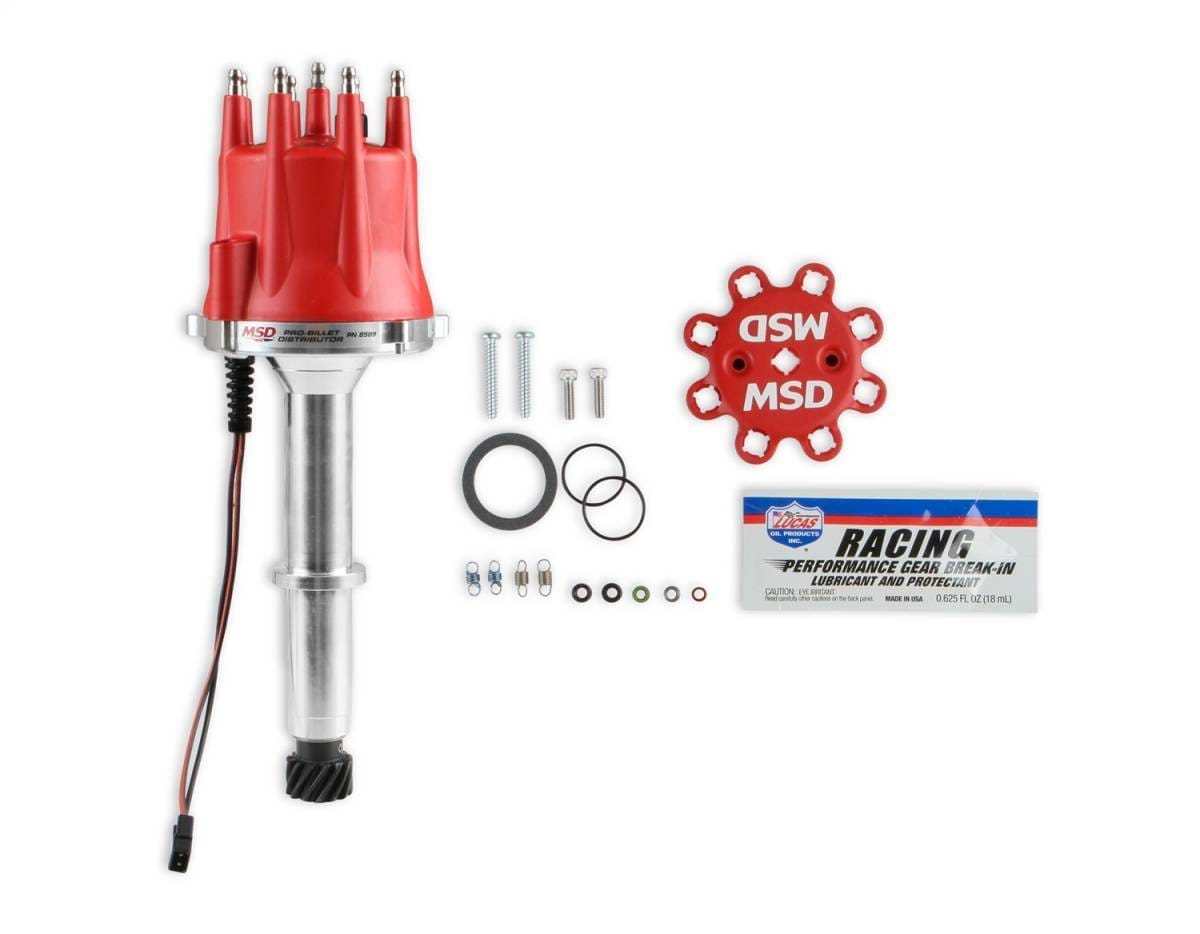

BCCX 8589 Holden V8 Pro-Billet Distributor

This is our most Australian popular performance distributor! Must be used with an MSD 6, 7 or 8-series ignition.Different springs and stop bushings are supplied so you can tune an advance curve to match your application.; Must be used with an MSD 6, 7 or 8-series ignition.; The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly.Features and Benefits: Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction; Advance weight pins are staked and tig welded to the plate; CNC machined billet aluminum housing and billet aluminum base; Easy-to-adjust mechanical advance with supplied springs and stop bushings; Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range; Mechanical advance assembly can be locked out for crank trigger systems; Must be used with an MSD Ignition Control; Nylon pads ensure smooth operation of the advance weights; O-ring seals can be added to modified blocks to improve oil pressure control; Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing; Special oil tract improves lubrication to the distributor and cam gear; Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts); Will not accept a vacuum advance canisterMSD; Distributor; Holden; Small Block Holden; Red Cap; Magnetic Pick up; Non Ready to Run; Billet; Street or Strip; Race; dependable; race proven;
