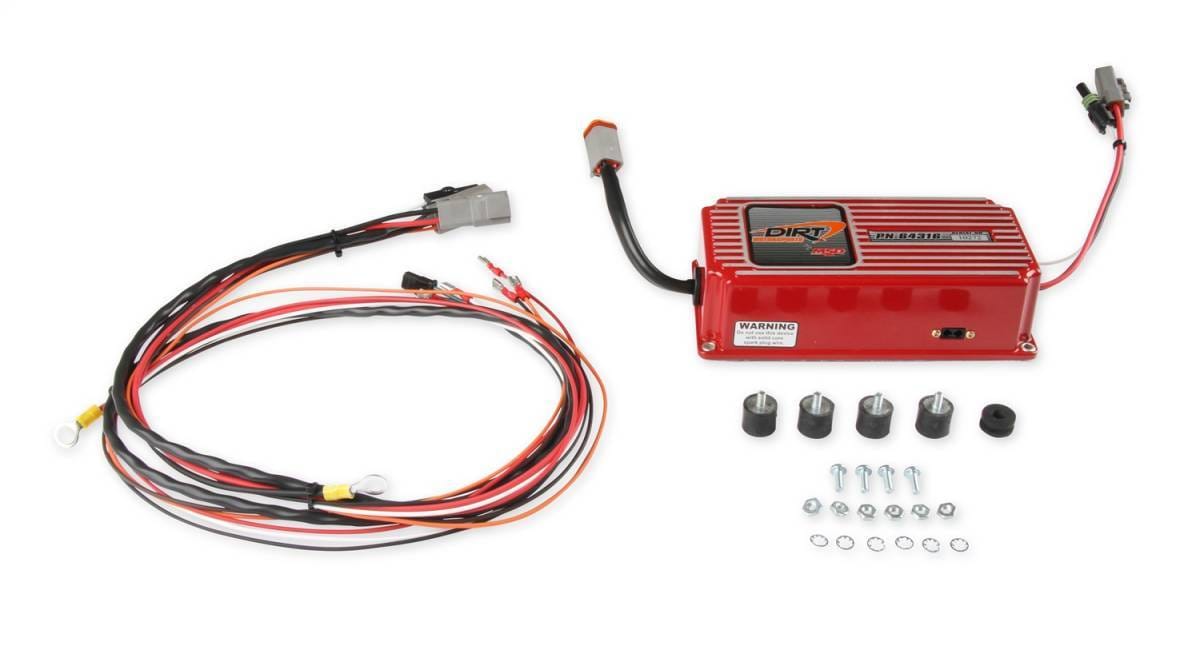

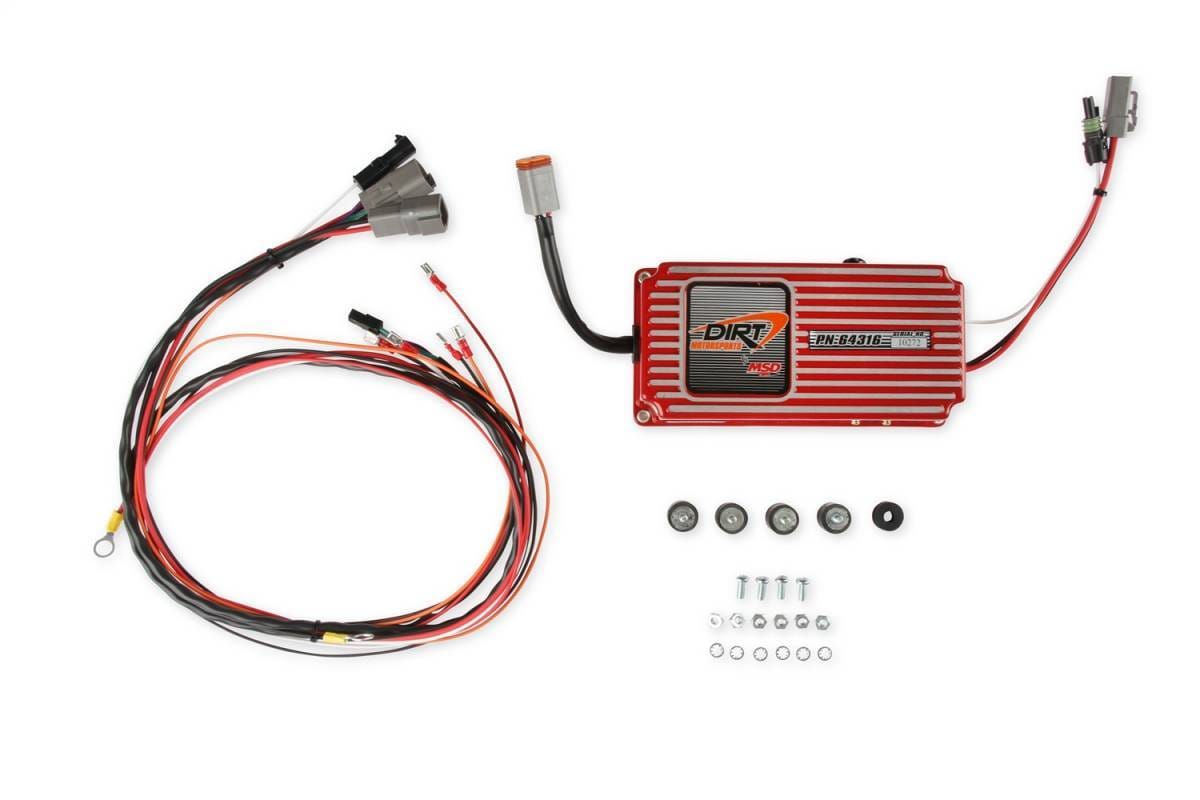

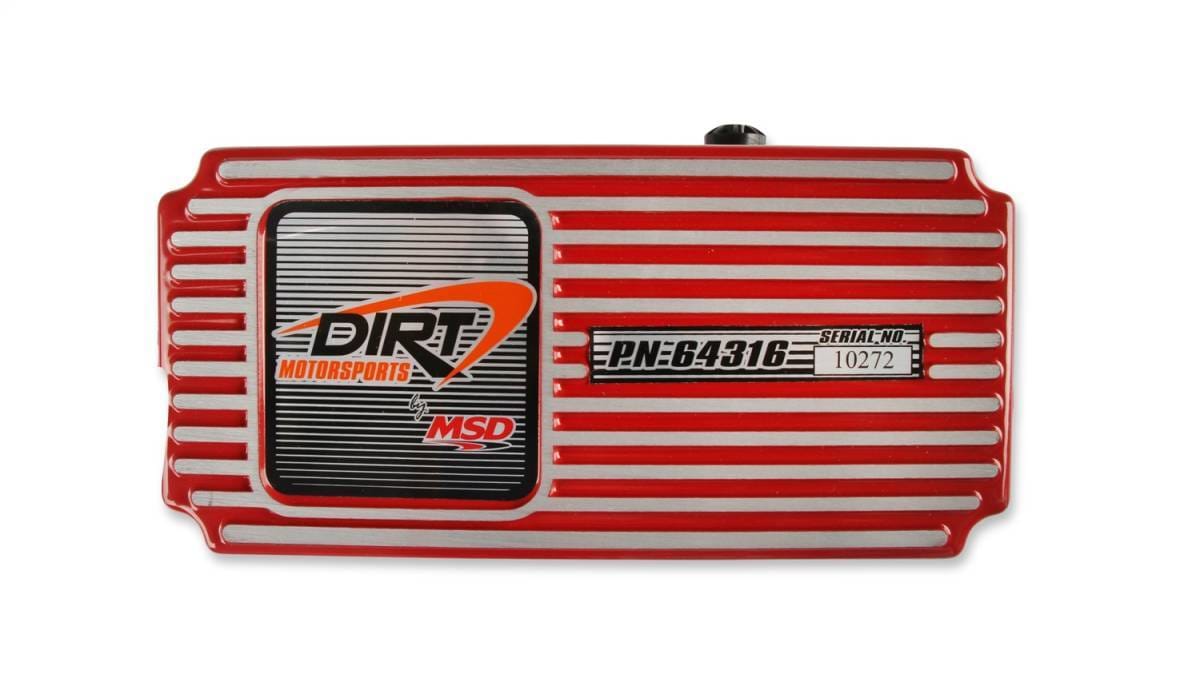

BCCX 64316 MSD 6ALN Ignition Control, DIRT

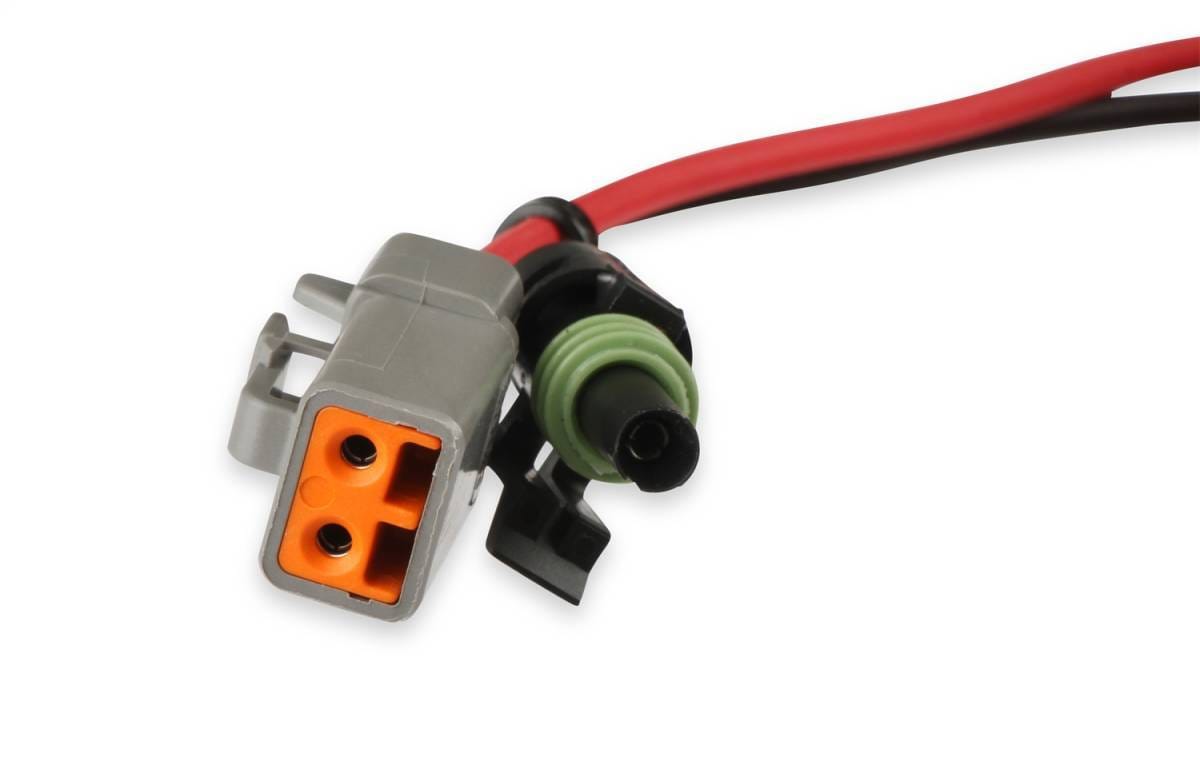

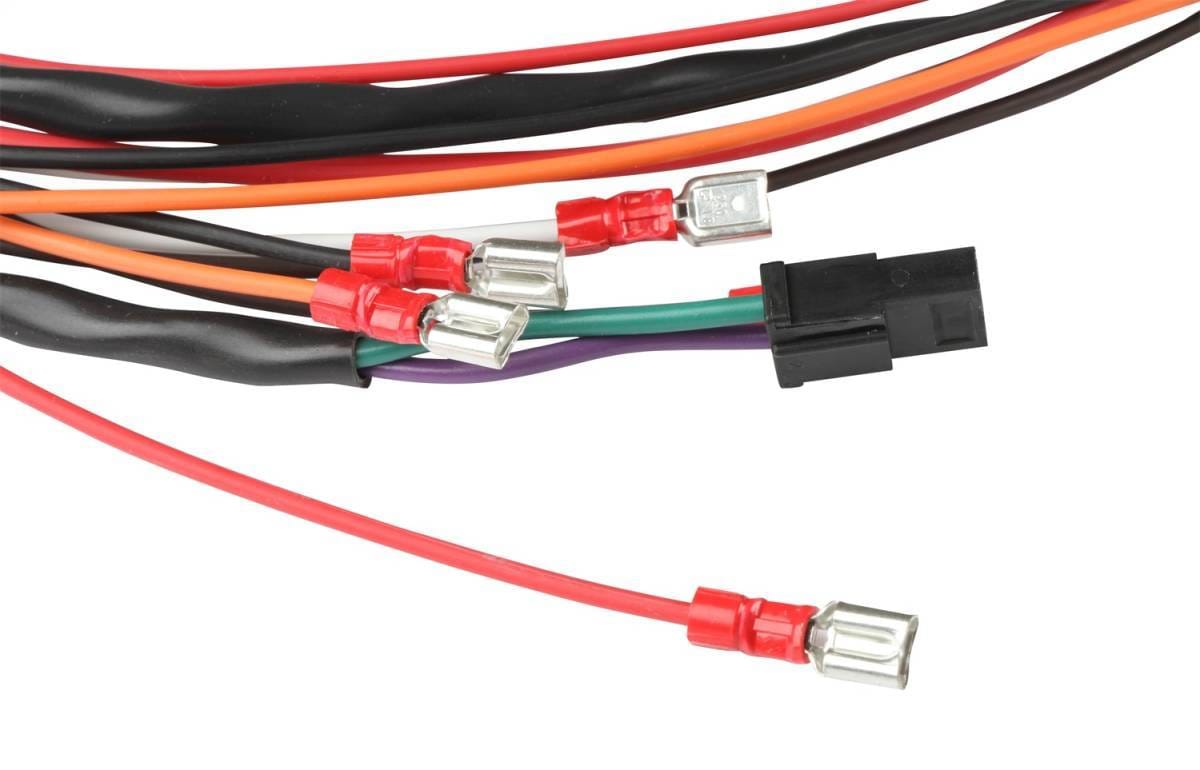

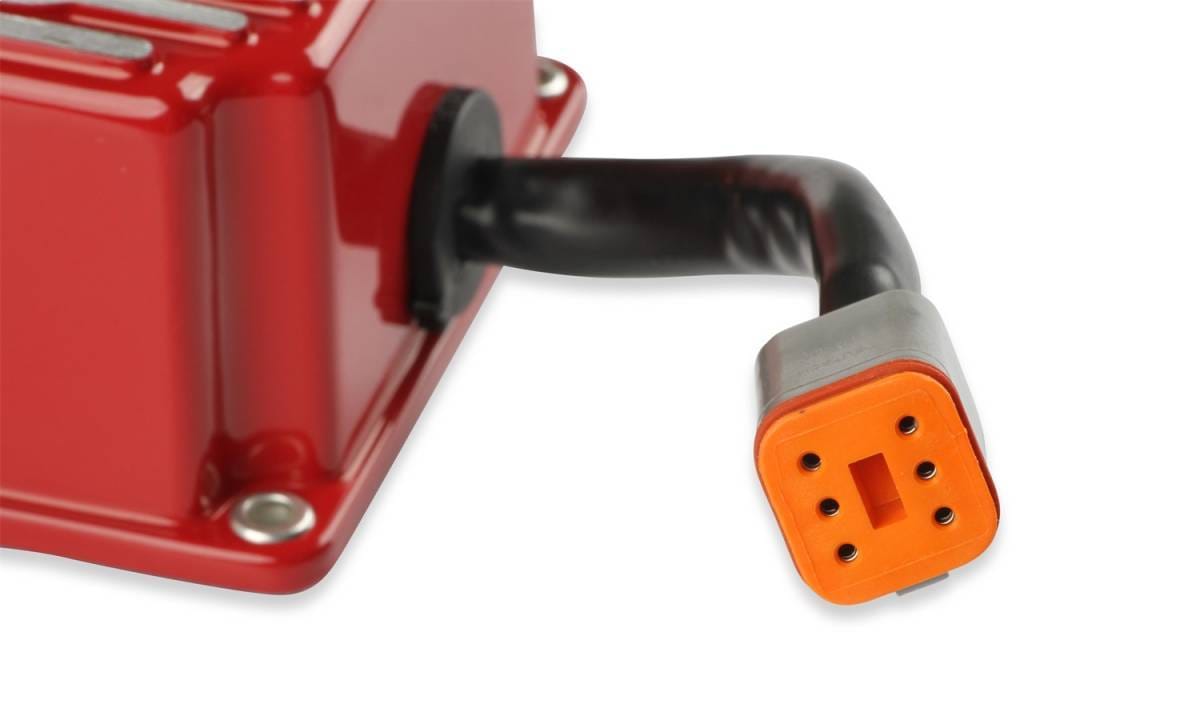

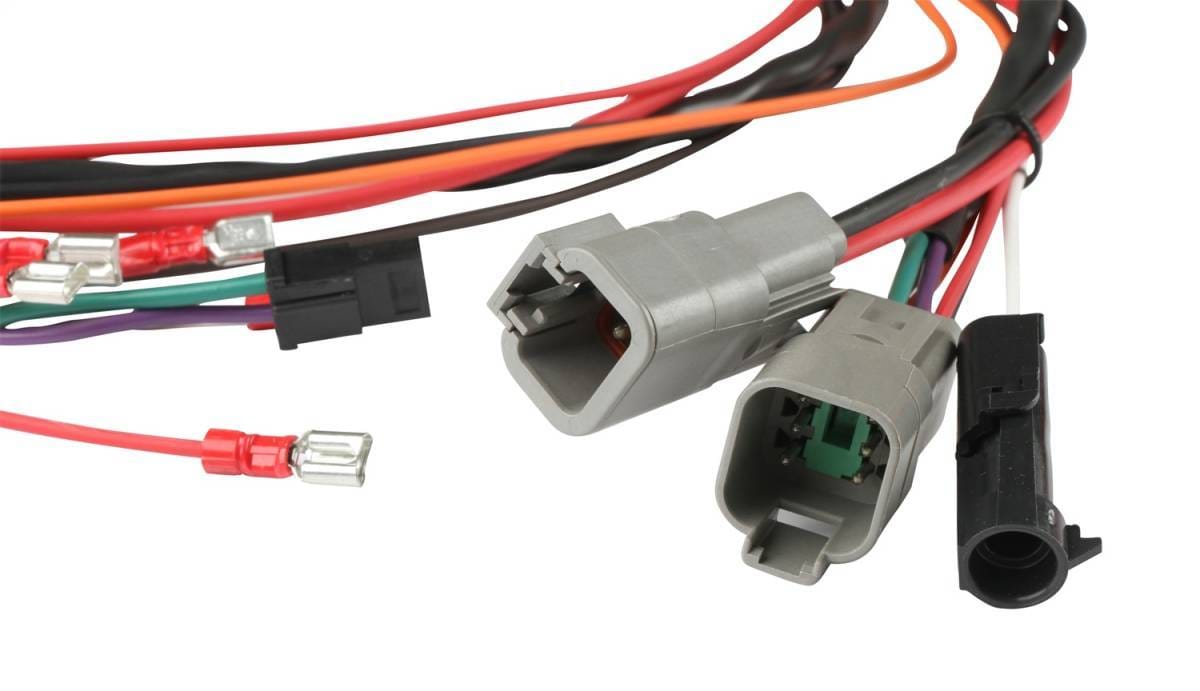

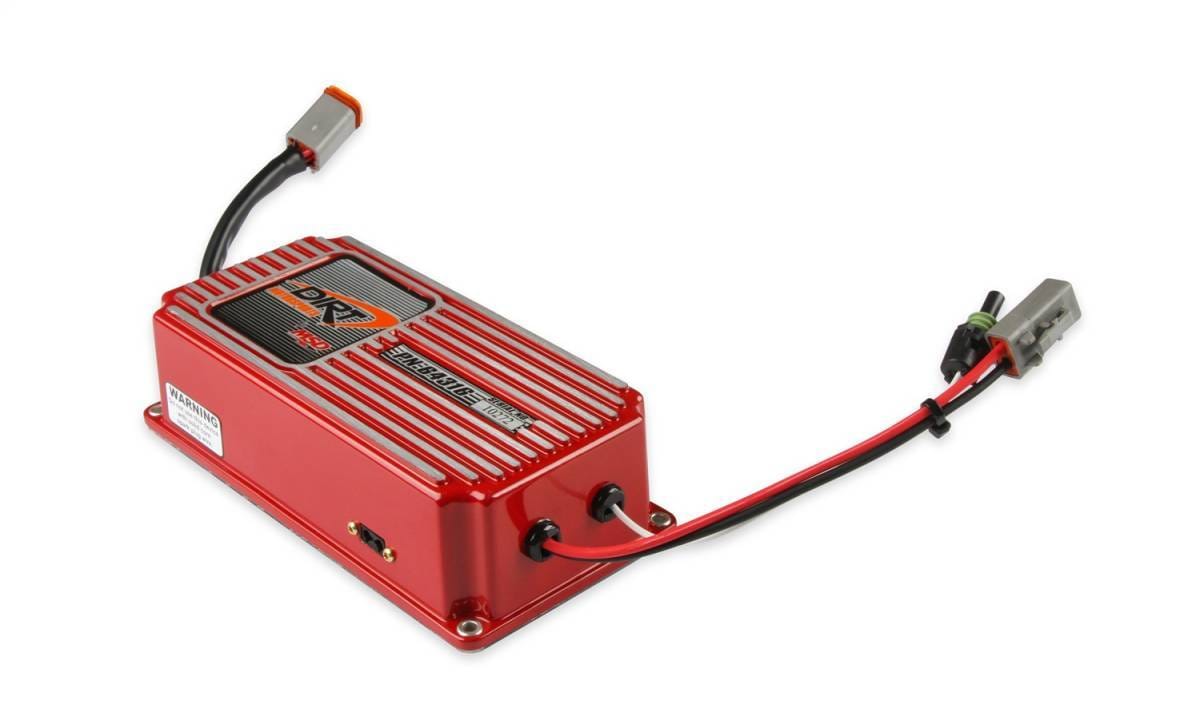

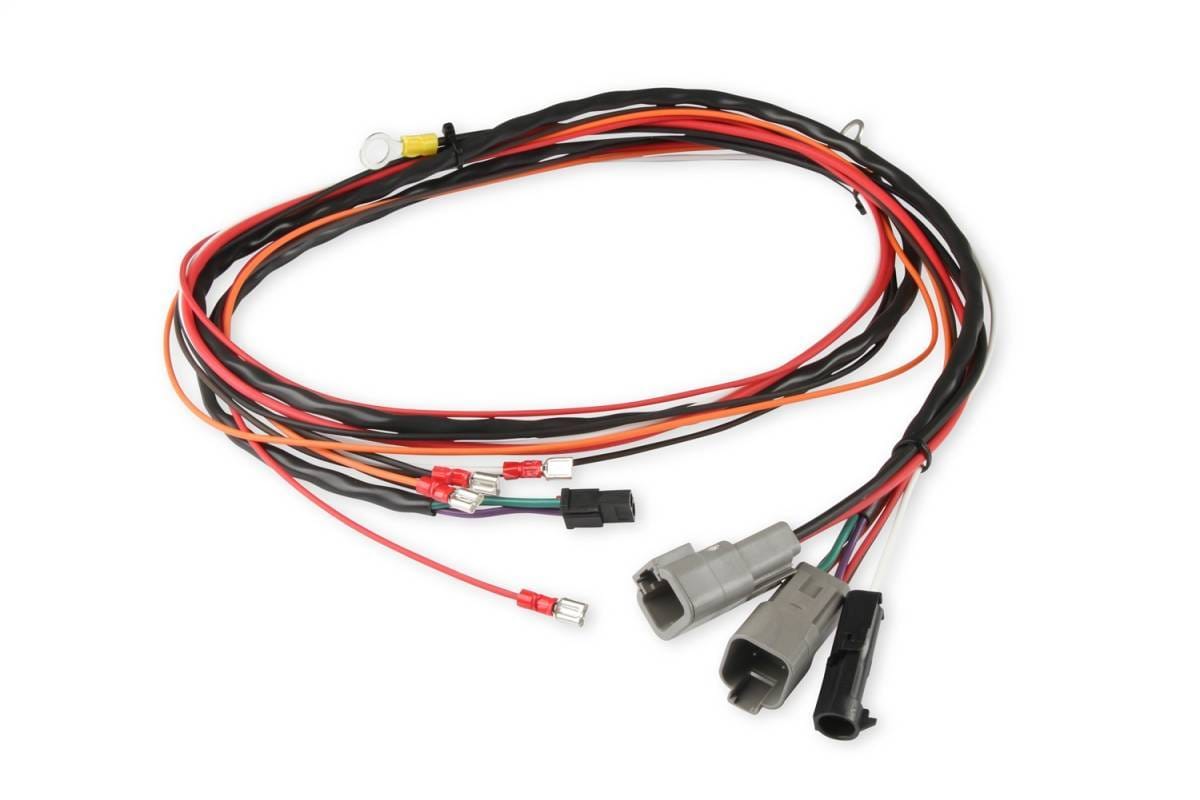

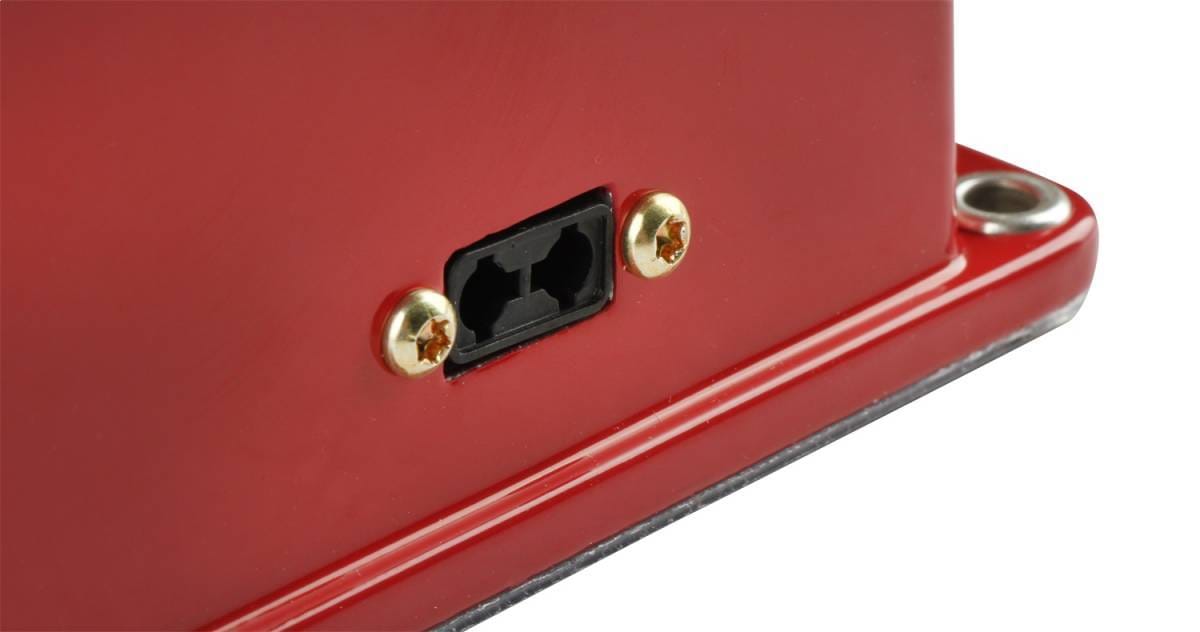

Extreme duty 6ALN with fixed 7,600 RPM rev limiter can handle the harshest racing environments.Originally designed with NASCAR in mind, the 6ALN is equipped with the 6-Pin Deutsch connector to meet NASCAR's ignition wiring rule. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection.; The 6ALN for DIRT Motorsports has a built-in Rev Control fixed to 7,600 RPM.. The rev control will save your engine from over-rev damage caused by missed shifts or driveline failure.Features and Benefits: 110 millijoules per spark up to 15,000 RPM; 470 primary voltage output to coil; 6-pin Weathertight connector, mandatory for NASCAR use; Accepts breaker points, amplifier and magnetic pickup trigger inputs; Built-in Soft Touch Rev Control is fixed to 7,600 RPM; Circuit board is encased in a clear two part silicone elastomer; Clear plastic base plate for easy tech inspection; Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection; Multiple spark, capacitive discharge ignition control; Multiple sparks for 20 degrees of crankshaft rotation; Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops; Supplied with rubber shock mounts; Works on 12 - 18 volt electrical systemFIXED 7,600 RPM REV LIMITERMSDIGNITIONDIRT; DIRTcar; 6AL; 6ALN
