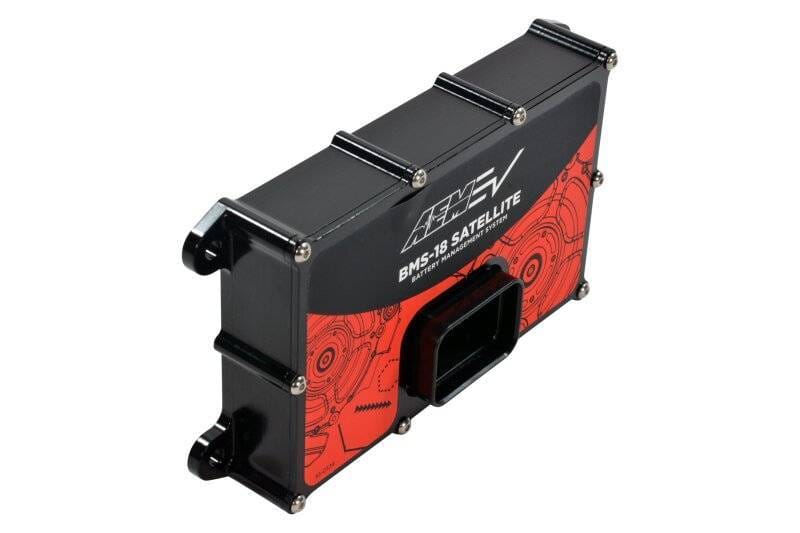

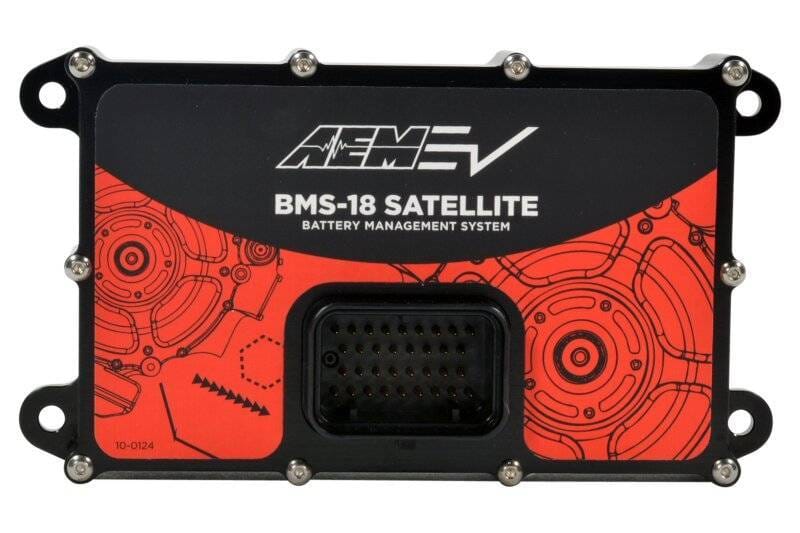

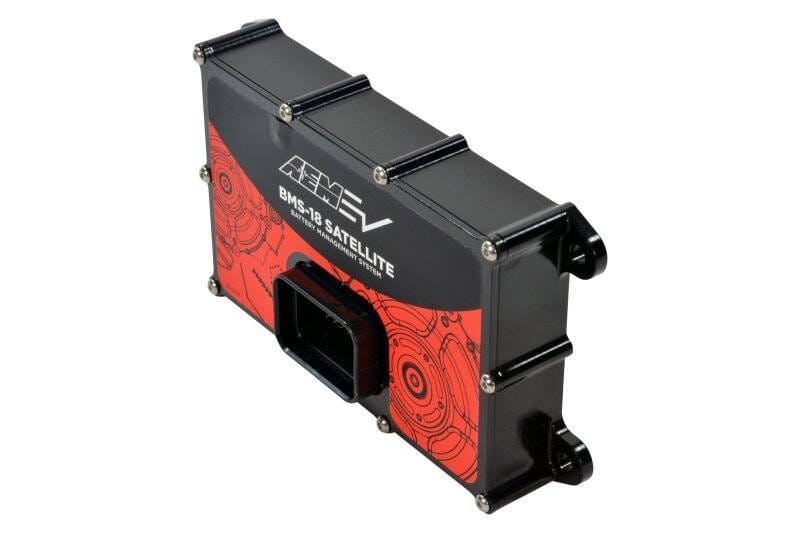

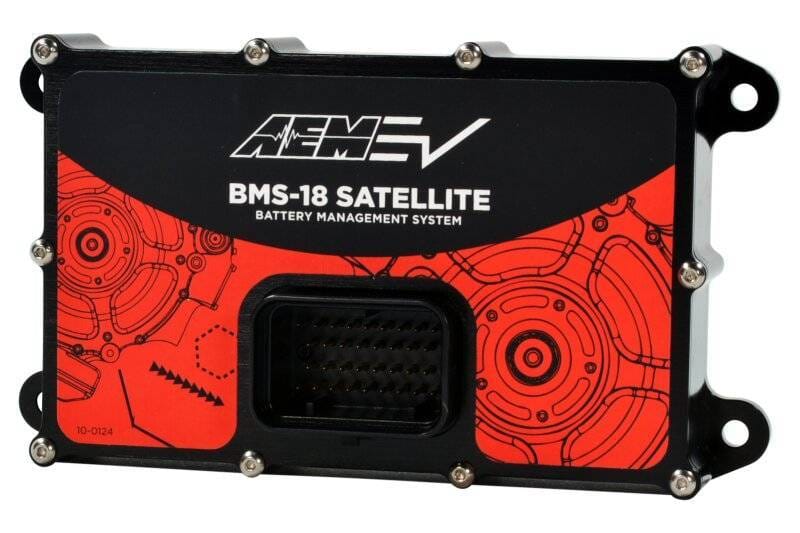

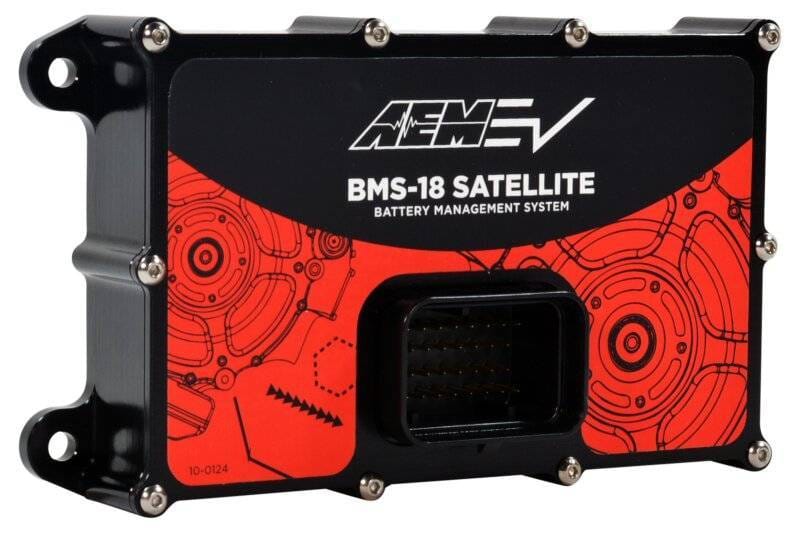

AEM 30-8401S AEM Battery Management System Satellite (MUST BE USED WITH MASTER - 18 Cell Taps)

BMS Satellite Module for VCUBattery Management System Satellite1. VCU; 2.BMS-18 Master; 3. BMS-18 Satellite(s); The AEM EV Battery Management System (BMS-18) is comprised of three components:; The BMS is implemented as two different Module types: the BMS Master and the BMS Satellite. Each Module is capable of measuring up to 18 cells and 3 temperatures (thermistors) but the Master also contains the CAN communication interface and J1772 charging specific connections needed for each battery pack.; The VCU communicates with the BMS via the Master Module and all battery packs need at least one Master unit. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration.; The VCU is responsible for all BMS control logic. All setup and calibration items can be modified using the AEMCal user interface.Features and Benefits: · Can be integrated into multiple satellite systems; · Capable of measuring up to 18 cells and 3 temperatures (thermistors); · Connected to Master BMS as part of system; · Weatherproof connector and housing
